A clean way to plug-in your phone!

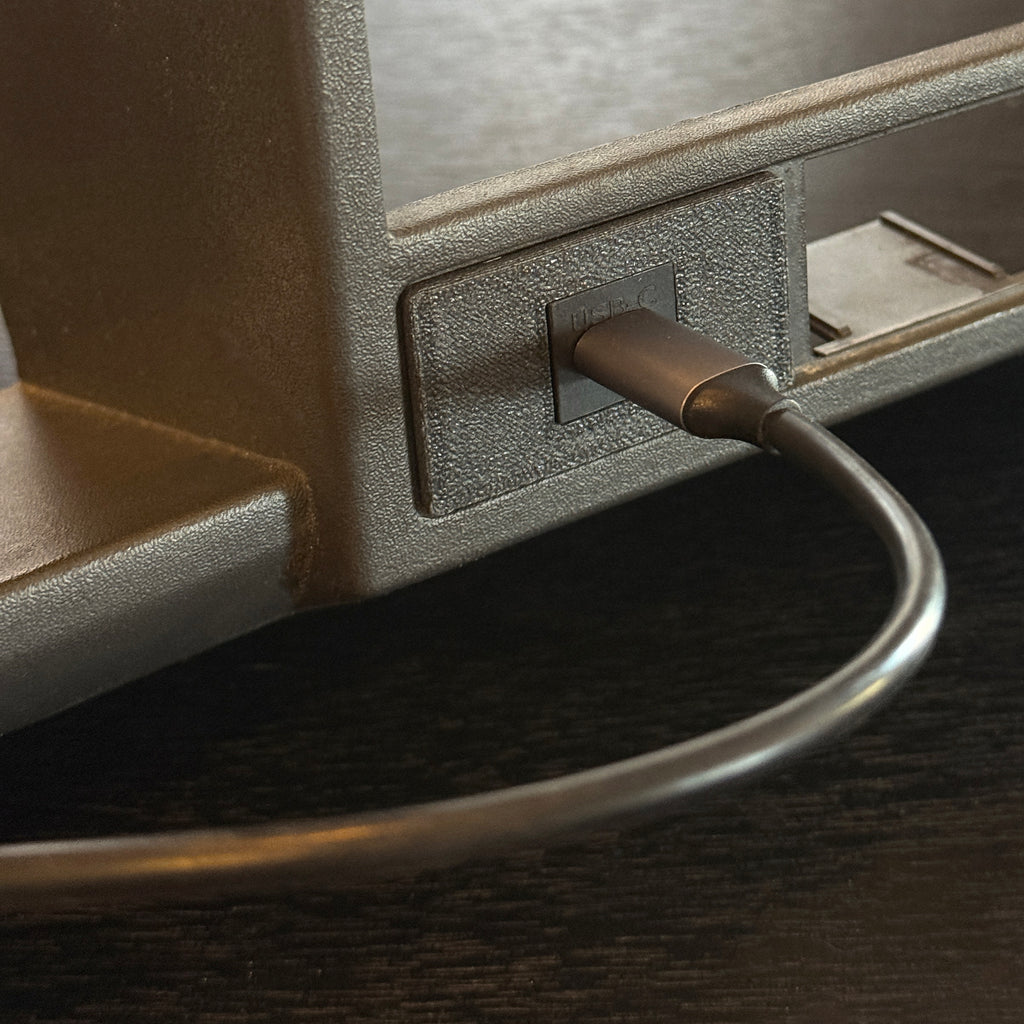

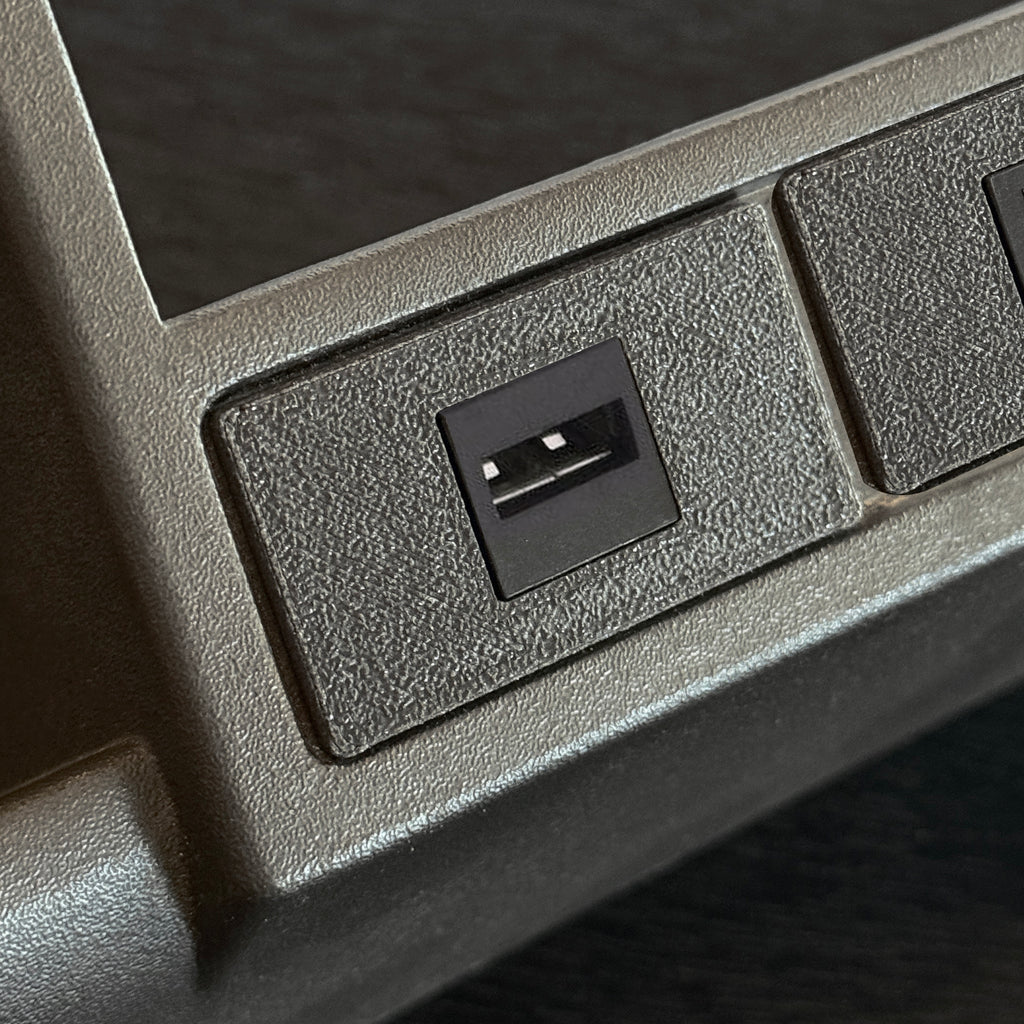

This 3D printed design allows you to utilize an unused accessory switch panel on the driver's gauge bezel, allowing for your choice of old-school USB or USB-C connections.
Perfect for wired CarPlay/Android Auto or to power and charge accessories (Power Source Needed).
- USB or USB-C Pass Thrus
- 3D Printed in PETG-CF
- Optional 12V Fuse Tap to USBC Power Source
These are designed for the left most panel, can be used with slight trimming and modifications for the other two dash panels.
Instructions
Installation is simple, first locate and remove the block off switch plate that is located just below the A/C control on the gauge bezel. This panel is designed for the location closest to the steering column.
Next run a USB cable through the dash bezel and connect to your radio head unit's USB input if available.
For powered versions, first locate a 12V source on your fuse block such as the radio fuse and tap into it with the optional 12V Fuse Tap to USBC Power Source.
Carefully insert the USB Dash Pass into the vacant port on the gauge bezel, it will be a snug fit. Plug in and stay tuned!
